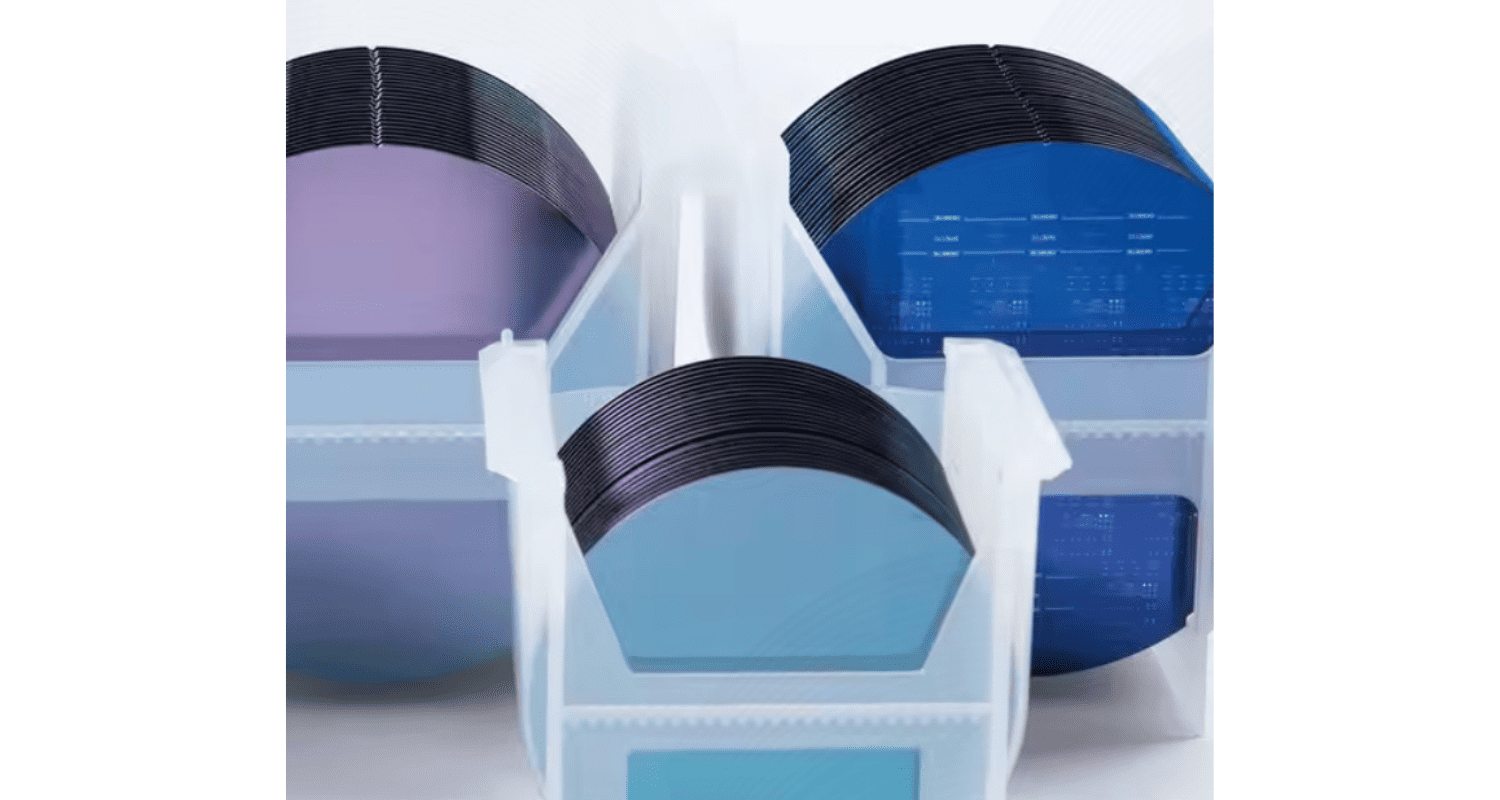

As the semiconductor industry pushes the limits of speed, miniaturization, and energy efficiency, Semicera is at the forefront with cutting-edge Silicon-On-Insulator (SOI) wafers designed for the next generation of high-performance electronics. These advanced substrates represent a major leap forward in chip design, delivering enhanced electrical isolation, lower power loss, and higher switching speeds.
What Is an SOI Wafer?
Unlike traditional silicon substrates, an SOI wafer features a multilayered structure:
● l A top device-grade silicon layer where transistors are built
● l A buried oxide (BOX) layer that serves as an insulator
● l A silicon handle wafer providing stability and mechanical strength
This architecture drastically reduces parasitic capacitance and improves performance across a wide range of high-frequency and low-power applications.
Why Choose SOI Technology?
Semicera’s SOI wafers enable:
● l Enhanced transistor isolation and reduced leakage
● l Lower dynamic power consumption
● l Better thermal dissipation
● l Superior performance in sub-10nm nodes
These benefits make SOI the platform of choice for devices requiring speed, precision, and reliability—from RF systems and 5G infrastructure to automotive radar and advanced AI edge processors.
Enabling Tomorrow’s Electronics
Semicera’s SOI wafers are ideal for:
● l RF front-end and antenna tuning applications
● l ADAS and autonomous vehicle sensor systems
● l Ultra-low-power wearable and mobile devices
● l FinFET and FD-SOI based CMOS circuits
With every wafer, Semicera empowers innovators to break through technical barriers and bring future-ready products to market faster.
Discover the Semicera Advantage
Whether you’re designing ultra-fast processors or mission-critical automotive electronics, Semicera delivers SOI wafers engineered to exacting specifications. We offer custom thicknesses, BOX layer configurations, and exceptional material purity to meet the most demanding manufacturing requirements.
