Pyrolytic Carbon: The Underrated Pure Carbon Armor in High-Temperature Semiconductor Processes

In the “high-temperature club” of semiconductor manufacturing, CVD SiC and TaC coatings are recognized as the stars—one a versatile workhorse, the other offering extreme temperature resistance. They frequently appear in various technical proposals and procurement lists, undergoing repeated discussion and continuous optimization. However, in the shadow of these two stars, there is another coating material that has long quietly shouldered the most demanding inert high-temperature tasks, yet is rarely discussed openly on a large scale within the industry. —That material is Pyrolytic Carbon (PyC).

I. Not All Carbon Is Pyrolytic Carbon

When “carbon” is mentioned, many people’s first thought is likely graphite. While graphite is certainly an excellent substrate, it is a porous material that adsorbs gases and releases particles at high temperatures, making it unsuitable for processes requiring extreme cleanliness.

Pyrolytic carbon is a dense carbon film formed by the chemical vapor deposition (CVD) process, in which hydrocarbon gases are cracked at high temperatures and deposited onto a substrate surface. While it is essentially pure carbon, its structure differs from graphite: it is a graphite-like material with a disordered layered structure, featuring short-range order and long-range disorder in its crystal arrangement, and can be engineered to be either isotropic or anisotropic.

Simply put: pyrolytic carbon is a “pure carbon armor” worn by the graphite substrate—the armor itself introduces no foreign elements, yet it seals all the pores of the substrate, maximizing purity.

II. Why is it called pure carbon armor?

Let’s take a quick look at pyrolytic carbon’s core capabilities through a set of key metrics:

Purity: ≥99.999%. It consists almost entirely of carbon, with no metallic impurities, and does not release volatile substances that could contaminate wafers at high temperatures.

Temperature Limit: Under inert atmospheres or in a vacuum, it can withstand long-term operation at temperatures up to 2800°C. This is a temperature range that neither SiC coatings (≤1600°C) nor TaC coatings (≤2300°C) can reach. In certain extreme operating conditions, pyrolytic carbon is the only viable solution.

Chemical Inertness: It exhibits excellent resistance to halogen gases such as H₂ and HCl, as well as inert gases, demonstrating unparalleled stability in vacuum or high-temperature inert environments. However, it is important to note that in high-temperature atmospheres containing NH₃ (such as GaN epitaxy), pyrolytic carbon coatings lack corrosion resistance and will undergo slow reactions. This characteristic clearly defines its application boundaries—it is inherently suited for high-purity inert environments, not ammonia-rich scenarios.

No Particle Contamination: The coating has a dense, non-porous structure and does not shed powder. This is a decisive advantage in processes such as ion implantation and diffusion, where particle count control is extremely strict.

Let’s use a table to quickly compare pyrolytic carbon and SiC coatings:

As the comparison shows, the “underestimation” of pyrolytic carbon stems precisely from its highly focused application scenarios—it is not used in high-temperature environments containing oxygen or ammonia, but once the scenario shifts to inert atmospheres, ultra-high temperatures, and ultra-high purity requirements, pyrolytic carbon is virtually the answer itself.

III. The Four Major Applications of Pyrolytic Carbon

1. Oxidation and Diffusion Furnace Tubes and Boat Holders

In the oxidation and diffusion processes of silicon-based chip manufacturing, quartz components were once the mainstream choice. However, when temperatures exceed 1200°C and control over metal contamination becomes nearly obsessive, pure silicon carbide ceramics or graphite components coated with pyrolytic carbon become the superior choice. The extremely high chemical inertness of pyrolytic carbon ensures that no unintended dopant elements are introduced onto the wafer surface.

2. Rapid Thermal Process (RTP) Furnace Components

The RTP process requires heating wafers to over 1000°C within seconds and then rapidly cooling them, placing extremely high demands on the thermal shock resistance and purity of the components. Pyrolytic carbon coatings are dense, and their coefficient of thermal expansion can be matched to the substrate through the manufacturing process, allowing them to remain intact even under repeated thermal shocks.

3. Ion Implanter Components

The high-energy particle streams and corrosive atmospheres generated during the ion implantation process pose a severe challenge to chamber components. Pyrolytic carbon is not only resistant to halogen corrosion but also produces minimal particulate matter, effectively preventing particle contamination of the wafer during the implantation process.

4. A New Approach to Coatings for Third-Generation Semiconductor GaN Epitaxy

In the high-temperature, ammonia-rich environment of gallium nitride (GaN) epitaxy, pure pyrolytic carbon coatings cannot be used directly as surface layers in contact with the process atmosphere due to their lack of resistance to NH₃ corrosion. However, pyrolytic carbon has not been ruled out—it is making inroads into this field in a different capacity: as a dense intermediate or base layer, forming a composite solution with a TaC top layer. TaC resists ammonia corrosion, while pyrolytic carbon provides perfect thermal matching and adhesion. Working in synergy, these two materials are becoming the new standard for coatings in high-end GaN epitaxial equipment.

IV. Three Common Misconceptions About Pyrolytic Carbon

Misconception 1: “Isn’t pyrolytic carbon just graphite? And graphite is cheap anyway.”

Wrong. Natural or synthetic graphite is a porous sintered material, whereas pyrolytic carbon is a dense film deposited via CVD. The two are like “bread” and “sugar coating”—though both are carbohydrates, their physical properties are worlds apart. The density, purity, and mechanical properties of pyrolytic carbon are simply incomparable to those of ordinary graphite.

Misconception 2: “Pyrolytic carbon is brittle and prone to cracking.”

Partially correct, but incomplete. While pyrolytic carbon does have lower fracture toughness than SiC, its brittleness can be significantly improved through the use of a dual-gradient transition layer and precise matching of the thermal expansion coefficients between the coating and the substrate. The pyrolytic carbon coatings customized by Xingsheng for its clients have undergone thermal shock cycling tests, demonstrating no cracking or peeling.

Misconception 3: “Pyrolytic carbon isn’t heat-resistant because carbon oxidizes at high temperatures.”

This confuses the conditions. Under inert gas or vacuum conditions, pyrolytic carbon is one of the most heat-resistant coating materials, capable of stable operation at temperatures approaching 3,000°C. Oxidation is only a concern in oxygen-containing atmospheres—and pyrolytic carbon is not intended for use in such environments. The first rule of material selection is that “the atmosphere determines the coating.”

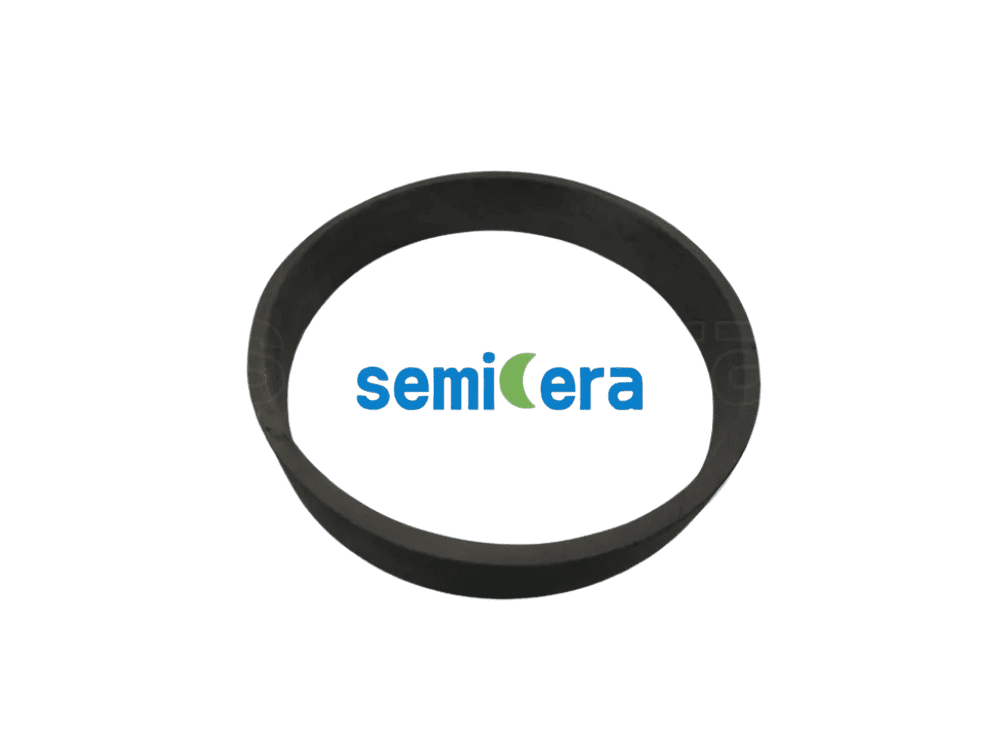

V. What Can Semicera’s Pyrolytic Carbon Do?

Thanks to over a decade of CVD technology expertise, Xingsheng has established stable and controllable process capabilities for pyrolytic carbon coatings:

- Purity Control: Pyrolytic carbon coatings consistently achieve a purity of 99.999% or higher;

- Customizable Thickness: Deposition ranges from a few micrometers to hundreds of micrometers, tailored to specific requirements;

- Full coverage of complex geometries: Complete coating of internal holes, grooves, and irregularly shaped components with no missed areas;

- Gradient structures: Design of isotropic layers and transition layers to balance density and thermal shock resistance;

- Typical products: Rapid annealing furnace bases, oxidation diffusion tube assemblies, and ion implanter baffles have all been delivered in volume; For GaN epitaxial ammonia-rich environments, we recommend TaC/pyrolytic carbon composite coating solutions, which are already in stable supply.

VI. Rethinking Pyrolytic Carbon

If the semiconductor equipment you manage requires operation in an inert high-temperature environment, demands extreme chemical inertness and particle control, yet struggles with SiC coatings that cannot withstand the temperature or corrosion—consider turning your attention to pyrolytic carbon. It may not be as renowned as SiC, but on its own battlefield, it is an irreplaceable “pure carbon armor.”

Want to learn more about pyrolytic carbon technical specifications or get details on SiC/pyrolytic carbon composite solutions? Feel free to contact us anytime for more product and technical solutions.
