Chapter 5-Full Lifecycle Management of Coated Components: Incoming Inspection, Process Monitoring, and Replacement Threshold Guide

Core Summary

Coated-part failures are rarely sudden. They are usually the accumulated result of gaps at each lifecycle stage: incomplete incoming inspection, additional stress during installation, and monitoring that focuses on single data points rather than trends. This page divides coated-part management into four stages—incoming inspection, installation, process monitoring and replacement thresholds—providing practical checklists and quantified criteria, plus a case study on moving from reactive replacement to predictive maintenance.

Author: Dr. Zhang, Senior Engineer, Semicera Semiconductor Materials

Many customer coating-management systems essentially operate on a “replace after failure” basis: action begins only when cracks become visible or particle count triggers an alarm. The problem is not simply slow response; it is the inability to distinguish normal wear from an approaching failure. The window between an alarm and actual failure can be very narrow.

1. Why Coated-Part Management Should Not Wait Until Cracks Are Visible

Coated-part failure normally progresses through a gradual sequence: microscopic defect initiation → slow propagation → accelerated propagation → macroscopic failure. If action is taken only at the macroscopic-failure stage, management is already behind the failure process and the window for planned replacement is limited, increasing the risk of unplanned downtime.

A more effective approach is to move management forward to incoming inspection and early use: filter out inherent defects through acceptance criteria, identify signals before accelerated propagation through trend monitoring, and turn reactive alarm response into proactive prediction of the replacement point.

2. Incoming Inspection: Three Checklists

Core principle: incoming inspection is not simply a pass/fail judgment. Its purpose is to establish traceable baseline data for each batch of coated parts, which can then be used for subsequent process monitoring.

2.1 Visual Inspection

Focus on three inherent defects: cracks, bubbles and local delamination. Under standardized lighting, use a 10× magnifier or microscope to inspect high-stress areas such as edges, corners and holes. These areas are also the locations most likely to fail first during service. Existing microcracks or bubbles can substantially shorten service life.

2.2 Thickness Uniformity

A recommended control range is within ±5% of the nominal value. Non-destructive sampling can be performed with an eddy-current thickness gauge, while cross-sectional SEM can be used for destructive verification. Thickness non-uniformity can contribute to thermal-stress cracking and localized particle contamination. In one case, batches with nearly 30% center-to-edge thickness deviation showed a much higher incidence of edge cracking; after thickness uniformity was controlled within ±5%, failure in the affected areas decreased significantly.

2.3 Purity Report

Verify total metallic impurities using ICP-MS or GDMS, with particular attention to semiconductor-sensitive transition metals such as Fe, Ni and Cu. Even trace levels may diffuse during high-temperature processing and contaminate wafers or epitaxial layers.

Semicera delivery standard: each batch of coated parts is supplied with a GDMS full-element analysis report. Total impurities are controlled below 5 ppm and key transition metals below 0.1 ppm. Acceptance data are archived as the baseline for subsequent process monitoring.

3. Installation Guidelines: Often-Overlooked Additional Stress

Installation risks are often underestimated because they may not cause immediate failure; instead, they are added to subsequent thermal-cycle stress and shorten actual service life.

• · Avoid impact to edges and corners during assembly and handling. Coating edges and corners are already stress-concentration zones; mechanical damage can become the preferred starting point for crack propagation during thermal cycling.
• · Strictly follow designed tolerances for fastening torque and positioning clearance. Avoid adding mechanical stress on top of the thermal stress generated during heating and cooling. Such combined stress can be difficult to identify during acceptance and monitoring and may only become apparent when installation records are reviewed during failure analysis.

Installation procedures and records should therefore be included in the coated-part traceability file rather than recording only the coating batch.

4. Process Monitoring: How to Build a Particle-Count Trend Curve

Key process-monitoring indicators include particle-count trends, temperature uniformity, and vacuum/gas-tightness leakage-rate changes. Particle count is often misused: many production lines focus only on whether a single measurement exceeds a limit, while the trend itself may contain more information.

4.1 Why Monitor the Slope Rather Than Only a Single Value

During stable wear, particle count normally fluctuates slightly. Once a sustained upward slope appears, it may indicate that microcracks have propagated through the coating thickness. This can serve as an early replacement signal, often appearing before the absolute particle-count value reaches its alarm threshold.

4.2 Recommended Method for Building Trend Curves

• · Collect data weekly or monthly and establish an independent trend curve for each coated part or furnace position rather than looking only at the furnace-wide average.
• · Set two levels of criteria for each curve: a numerical alarm threshold for an absolute-value exceedance and a slope alarm threshold for a defined growth rate over N consecutive cycles. Trigger investigation when either criterion is met.
• · Record temperature uniformity and vacuum/gas-tightness leakage rate in the same trend record. Root-cause analysis of particle contamination often requires both thermal-field and gas-flow information.

In one case, particle count rose abnormally at an edge region. The root cause was ultimately identified as its proximity to a gas inlet and a local temperature fluctuation of ±15°C, compared with ±3°C at the furnace center. The issue was attributed to local thermal cycling caused by gas-flow distribution rather than the coating batch. Adjusting the local power distribution and increasing coating thickness to 150 μm resolved the issue.

5. Replacement Thresholds: How to Quantify “It Is Time to Replace”

Specific scrap thresholds for crack density, individual crack length and particle count vary with product design and customer process tolerances. A single universal number should not be applied. Instead, define a quantitative checklist jointly with the equipment/process team as part of the acceptance standard. The following framework can be used as a starting point; actual values should be calibrated to the specific process.

These numerical boundaries are reference starting points only. Tolerances for particle contamination and crack propagation vary greatly by product and process. Historical failure data from the actual production line should be used for calibration rather than directly applying generic values.

6. Case Study: From Reactive Replacement to Predictive Maintenance

A customer previously used a simple strategy: replace the coated part whenever particle count triggered an alarm. The average buffer between an alarm and actual replacement was only a few days, often disrupting production scheduling and occasionally causing unplanned downtime.

We helped establish a weekly trend-curve system and split the original single-value alarm into two levels: numerical alarm and slope alarm. After several months, the customer reported that slope alarms appeared on average one to two weeks before numerical alarms. This lead time was sufficient for planned replacement scheduling, and unplanned downtime was essentially eliminated.

Semicera provides lifecycle data-management support: each batch of coated parts carries a unique traceability code, allowing the full chain—from incoming inspection and installation records to process monitoring and end-of-life evaluation—to be reviewed. The technical team follows up at key points to help customers implement the trend-monitoring system rather than simply delivering an inspection report.

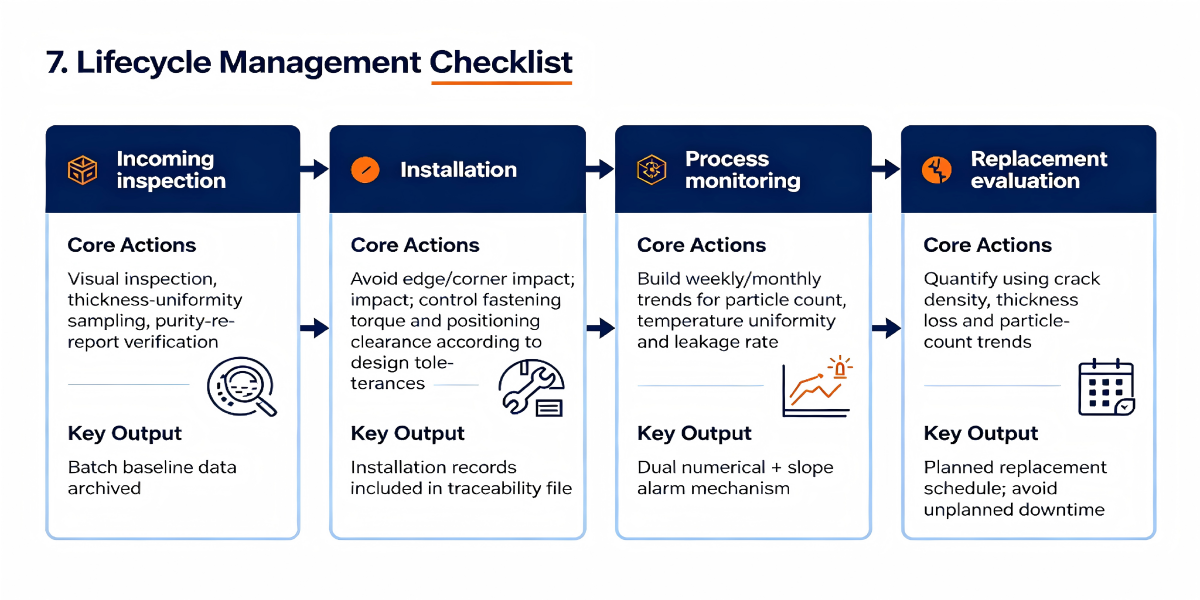

7. Lifecycle Management Checklist
