The continuous advancement of semiconductor technology has placed increasingly stringent demands on material purity, thermal stability, and process consistency. While much attention is often given to crystal pullers, epitaxy reactors, and deposition equipment, one of the most fundamental components in silicon crystal manufacturing remains the Fused Quartz Crucible. As the primary container used during high-temperature silicon melting, it plays a decisive role in determining crystal quality, oxygen concentration, and production yield.
From conventional integrated circuits to advanced logic devices, power semiconductors, and photovoltaic silicon wafers, fused quartz crucibles have become an indispensable part of modern crystal growth technology. Understanding their material characteristics and engineering functions provides valuable insight into how semiconductor manufacturers achieve increasingly higher crystal quality and larger wafer dimensions.
What Is a Fused Quartz Crucible ?

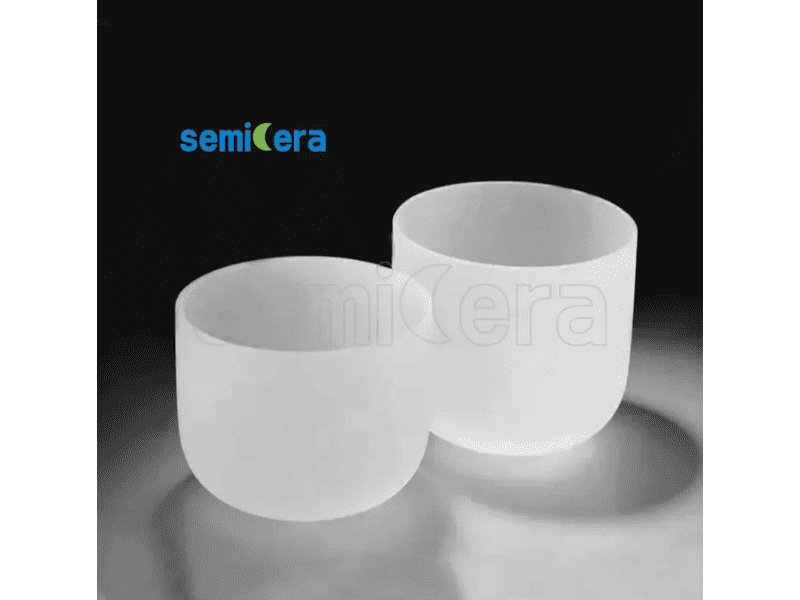

A Fused Quartz Crucible is a high-purity container manufactured from natural or synthetic silica (SiO₂) through electric arc fusion or flame fusion processes. Unlike conventional ceramic or refractory materials, fused quartz combines exceptional chemical purity with excellent thermal stability, making it uniquely suitable for containing molten silicon during crystal growth.
One of its most important characteristics is its extremely low concentration of metallic impurities. Semiconductor manufacturing requires impurity levels measured in parts per million—or even parts per billion—to prevent unwanted contamination of silicon crystals. High-purity fused quartz provides the clean processing environment necessary to support these demanding specifications while maintaining dimensional stability under continuous exposure to temperatures exceeding 1,400°C.
Its low coefficient of thermal expansion also enables the crucible to withstand repeated heating and cooling cycles without significant deformation or cracking, contributing to stable long-term operation during crystal pulling.
How Do Fused Quartz Crucibles Influence Single Crystal Silicon Growth?
The most significant application of fused quartz crucibles is found in the Czochralski (CZ) crystal growth process, which remains the dominant manufacturing method for producing monocrystalline silicon wafers.
During crystal growth, high-purity polysilicon is loaded into the quartz crucible and heated until completely molten. A seed crystal is then slowly withdrawn while rotating, allowing a single silicon crystal to grow under carefully controlled thermal conditions.
Although the crucible appears to serve only as a container, it is in fact an integral component of the entire thermal field system. Its geometry, wall thickness, and thermal properties directly influence heat transfer, melt convection, temperature gradients, and the stability of the solid-liquid interface. These factors ultimately affect crystal diameter control, resistivity uniformity, defect density, and overall production yield.
For manufacturers producing 200mm and 300mm silicon wafers, the consistency of the quartz crucible has become just as important as the performance of the crystal pulling equipment itself.
Why Is Oxygen Control So Important in Quartz Crucibles?
Unlike many high-temperature processing materials that aim to eliminate every possible interaction with the melt, fused quartz plays a unique and carefully controlled role in semiconductor manufacturing by introducing a small amount of oxygen into molten silicon.
During the CZ process, limited dissolution of silicon dioxide occurs at the interface between the crucible and molten silicon. This controlled oxygen incorporation is not simply tolerated—it is often beneficial. Appropriate oxygen concentrations can improve the mechanical strength of silicon wafers, suppress dislocation propagation, and enhance wafer stability during downstream thermal processing.
Because oxygen concentration directly influences electrical properties and crystal quality, modern fused quartz crucibles are engineered with highly controlled purity, microstructure, and manufacturing processes to achieve consistent oxygen release throughout extended crystal growth cycles. Consequently, the crucible functions not only as a containment vessel but also as an active process-control component within the crystal growth system.
Evolving for Next-Generation Semiconductor Manufacturing
The rapid expansion of advanced semiconductor technologies—including 300 mm silicon wafers, high-performance power devices, and next-generation integrated circuits—is driving continuous innovation in quartz crucible design.
Today’s semiconductor manufacturers require crucibles with increasingly higher purity, lower bubble content, improved dimensional accuracy, and longer operational lifetimes. To meet these requirements, many premium products now utilize dual-layer construction, combining an ultra-clean inner layer optimized for contamination control with a mechanically reinforced outer layer designed to withstand prolonged thermal cycling.
At the same time, improvements in raw material purification, melting technology, and precision annealing have significantly enhanced thermal shock resistance and structural uniformity. These developments enable larger crucibles to maintain stable performance throughout extended crystal growth campaigns while supporting the industry’s transition toward larger wafer diameters and tighter process tolerances.
Partner with Semicera Semiconductor
At Semicera Semiconductor, we provide high-purity Fused Quartz Crucibles engineered for reliable crystal growth and consistent semiconductor manufacturing. Produced from premium quartz materials with strict quality control, our crucibles deliver excellent thermal stability, low contamination, and long service life for CZ silicon crystal growth and other high-temperature applications. Backed by experienced engineering support and customized solutions, we help customers improve crystal quality and process efficiency. Contact Semicera Semiconductor today to discuss your project and discover the right quartz solution for your semiconductor manufacturing needs.
