From 2050 °C melt to optical-grade crystals: performance, parameters, processing, and application scenarios
Sapphire single crystal is a transparent ceramic formed through the layer-by-layer growth of high-purity alumina (with a purity exceeding 99.995%) under extreme high temperatures. With a hardness second only to that of diamond, it combines excellent corrosion resistance, thermal stability, and broad-bandlight transmission properties, making it an irreplaceable functional material in optics, electronics, and industry.
I. Why use sapphire?
Sapphire is frequently chosen not because of a single outstanding property, but because it simultaneously meets four often conflicting requirements: high hardness, corrosion resistance, light transmittance, and thermal resistance.
|
|
|
|
Mechanical strength |
Mohs hardness grade 9 – second only to diamond; offers excellent wear resistance and impact resistance, making it ideal for structural and optical components operating under harsh conditions. |
|
Chemical stability |
It exhibits resistance to acid and alkali corrosion at room temperature; only at temperatures above 300 °C does it exhibit slight erosion by hydrofluoric acid or molten strong bases, and it can withstand prolonged exposure to harsh environments. |
|
Optical performance |
It exhibits high transparency across a wide spectral range from near-UV to infrared, with visible light transmittance of approximately 95% and infrared transmittance of approximately 85%. |
|
Thermal properties |
Melting point: 2050 °C; capable of stable operation at high temperatures up to approximately 1900 °C; exhibits excellent thermal conductivity and electrical insulation properties, making it suitable for high-temperature and heat dissipation applications. |
II. Core Technical Specifications
2.1 Material Physical Properties Parameters
|
Chemical composition |
Al₂O₃ (single-crystal alumina) |
|
Crystal structure |
Trigonal system · Corundum-type |
|
Moh's hardness |
9 |
|
Density |
3.98 g/cm³ |
|
Melting point |
2050 ℃ |
|
Maximum working temperature |
Approximately 1900 °C |
|
Visible light transmittance |
≥ 95 % |
|
Infrared transmittance |
≥ 85 % |
|
Thermal conductivity at room temperature |
Approximately 40 W/(m·K) |
|
Mass resistivity |
> 10¹⁴ Ω·cm |
2.2 Key Raw Material Control Parameters (High-Purity Alumina)
|
Raw material purity |
> 99.995 % |
|
ρ-Al₂O₃ content |
80 % ± 2 % |
|
Na₂O content |
< 0.4 % |
|
D50 particle size |
8–10 μm |
|
Loss on ignition (LOI) |
8 % ± 2 % |
|

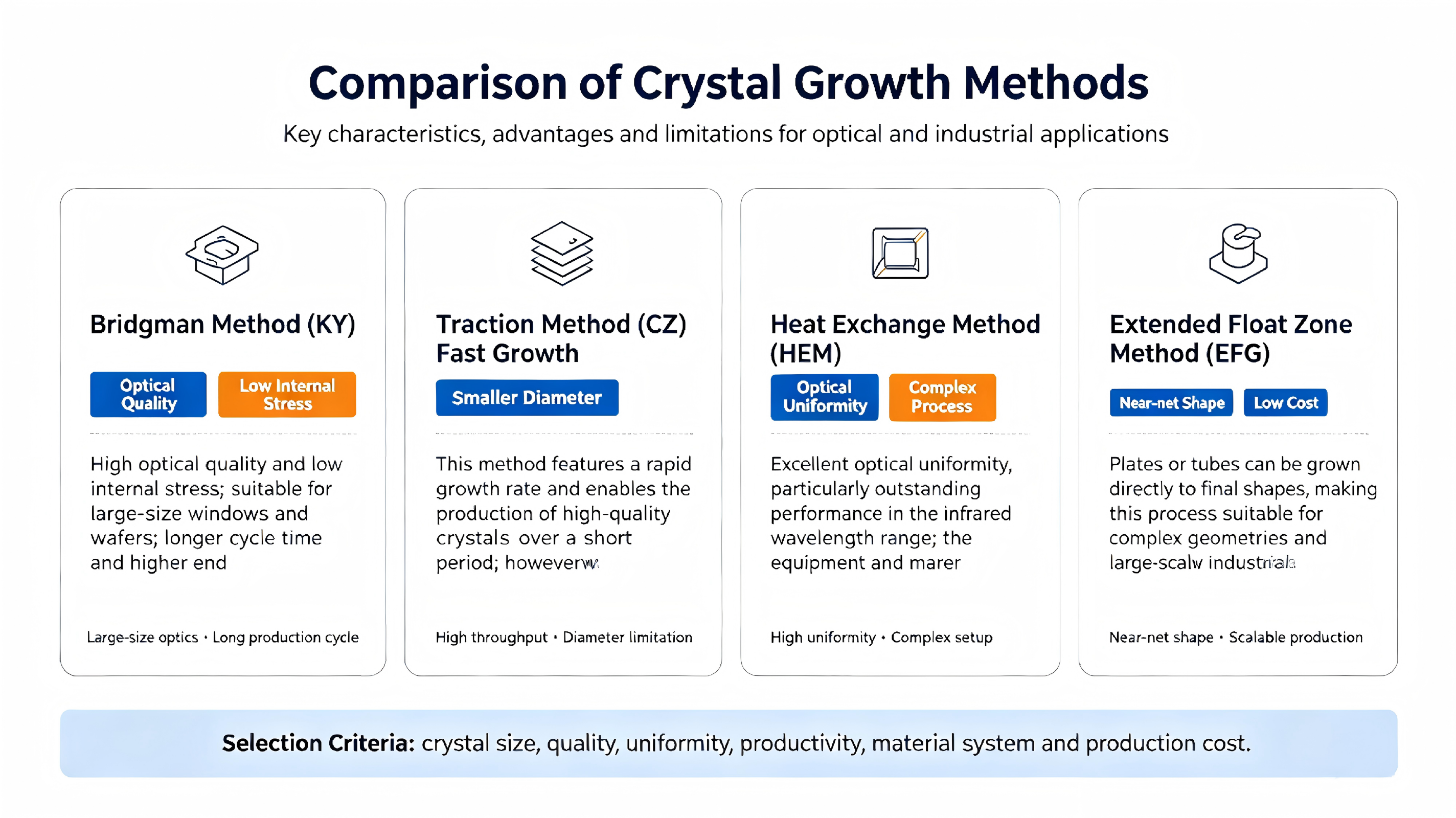

Typical growth pattern |
Soaking method / Lifting method / Heat exchange method |
|
Crystal ingot specifications |
90 – 400 kg / furnace |

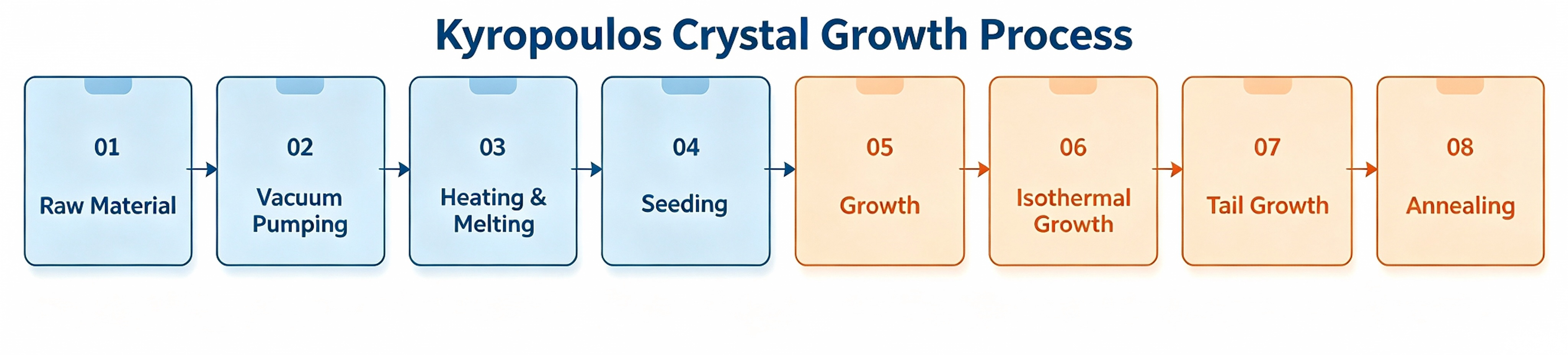

III. Production Process-Kyropoulos Crystallization Process
The floating growth method is currently the most prevalent growth technique for large-sized, optical-grade sapphire crystals: during the growth process, the crystal does not come into contact with the crucible, resulting in low internal stress and a defect density significantly lower than that of the Czochralski method, making it well-suited for producing high-quality, large-sized crystal ingots.
|
Process |
|
|
01 Loading |
Load high-purity alumina raw material into a tungsten or iridium crucible; the crucible material must withstand temperatures exceeding 2000 °C without contaminating the melt. |
|
02 Vacuuming |
Vacuum the system to a pressure range of approximately 10⁻⁵–10⁻⁶ Torr to minimize gas impurities and oxidation, preparing the material for high-temperature melting. |
|
03 Heating and Melting |
By employing multiple independent temperature-controlled heating units to create an appropriate longitudinal and radial temperature gradient field, the raw material is fully melted (approximately 2100°C). |
|
04 Crystal Nucleation |
The seed rod is lowered to the surface of the melt; after partial melting, it is cooled to its melting point, where undercooling occurs at the solid–liquid interface, initiating directional solidification. |
|
05 Shoulder Release |
Gradually lower the temperature to allow the crystal to expand radially to the target diameter, thereby progressively forming the ingot shoulder. |
|
06 Equal-radius growth |
The precise control of the temperature field and the melt surface level, ensuring that the crystal grows continuously at a stable diameter, is the critical stage determining the ingot yield. |
|
07 Closing |
Gradually reduce the crystal diameter and the growth rate to allow the crystal ingot to detach smoothly from the melt surface, thereby avoiding thermal shock. |
|
08 Annealing |
Allow the material to cool slowly to room temperature within the furnace to fully release internal crystal stresses, prevent cracking, and reduce dislocation defects during subsequent processing. |
IV. When to Use — Reasons for Selecting Based on Use Case
The decision to use sapphire depends on whether the operating conditions require at least two of the following properties – "high hardness + corrosion resistance + light transmittance / electrical insulation" – and whether the cost can cover its relatively high raw material and processing expenses.
LED chip substrate
Suitable for large-scale GaN-based LED epitaxial growth.
Sapphire exhibits excellent chemical stability, superior optical properties, and well-established supporting manufacturing processes, making it the most widely used substrate material for gallium nitride (GaN) epitaxial layers. It is extensively employed in LED products, including lighting and display backlights.
Infrared optical window / fairing
Suitable for high-speed flight, highly corrosive, or high-impact environments.
The infrared guidance window of the missile must withstand aerodynamic heating and impact during high-speed flight, as well as resist erosion from wind, sand, and rain; the high strength, optical transparency, and corrosion resistance of sapphire make it an ideal material for the fairing.
Consumer electronics protective accessories
Suitable for: exposed surfaces requiring long-term scratch resistance.
For components subject to prolonged exposure and high wear—such as watch crystal, smartphone camera protectors, and fingerprint recognition windows—sapphire is used, leveraging its hardness, which is close to that of diamond, to ensure long-term clarity and durability.
Semiconductor and Optical Instrument Window
Suitable for: vacuum chambers, analytical instruments, and optical communications
Due to its wide bandwidth, high transmittance, excellent electrical insulation properties, and chemical inertness, this material is suitable for use in vacuum reactor observation windows, scanner windows, optical components for analytical instruments, and optical communication components.
V. Common Product Specifications — From Crystal Ingots to Finished Products
The same sapphire ingot, after cutting, grinding, and polishing, can be processed into end products of various specifications, such as wafers or optical window sheets.
|
Crystal ingot (KY Boule) |
Typical specifications: 90–400 kg, with diameters exceeding 300 mm; used for cutting into various types of wafers and sheets. |
|
C-Plane Wafer |
Common specifications: 2–12 inches; C-sided orientation; single-sided or double-sided polishing; suitable for epitaxial growth of LED and power devices. |
|
Optical Window |
Customizable thickness and coating options available for infrared fairings, vacuum observation windows, and high-strength protective screens. |
